TTR Reinforced Tube Profile

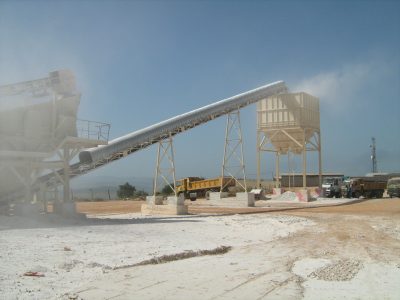

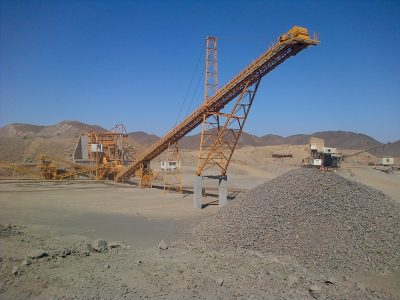

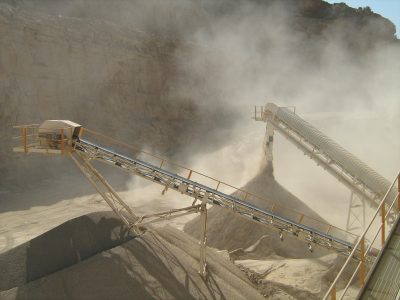

Frame made of four square structural tubes, diagonally braced and welded lengthways and transversely, forming a frame and trellis.

The intermediate frames are constructed in modules with the intention of making transport and installation at the client as easy as possible, as well as the possibility to adapt to any length of conveyor required.

The carrying idlers are bridled over the frame, permitting, in a simple way, the modification of its distribution and position for the correct centering and aligning of the belt.

The drums are made of cylindrical laminated metal sheet, mechanized to the tail drum and stuck to the drive. The shafts of the drums are fixed to the interior cylindrical metal tube cubes, using conical rings and SN type supports with bearings to the frame.

Standard belt widths are of 500, 650 and 800mm. Special project widths of 1000 mm are being studied.

Maximum transport capacity, depending on densities and the characteristics of each product are about 250-300 T/h.

Auxiliary Elements

  • Guías laterales con/sin tapa
  • Tolvín de caída
  • Tripper de descarga
  • Cubierta superior abatible a ambos lados
  • Soportes de apoyo
  • Soportes de apoyo regulables en altura
  • Bandeja inferior de recogida
  • Sistemas eléctricos de seguridad
  • Rascadores especiales
  • Pasarela unilateral o ambos lados, con vuelta en cabeza
  • Convertidores de velocidad/ Convertidores de frecuencia

Application Sectors

  • Tratamiento de áridos y canteras
  • Reciclaje y medio ambiente
  • Industria energética
  • Obras públicas
  • Industria química
  • Hormigón, yeso y asfalto
  • Agropecuario
  • Industria alimentaria y manufacturera
