TUL Laminated UPN Profiles

Its use combines the robustness proportioned by its structure and easy use because of its frame dimensions, enabling adaptation to any situation.

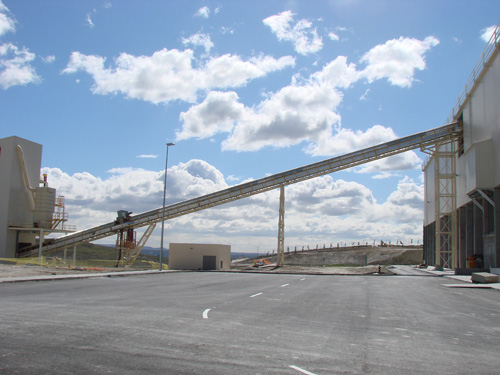

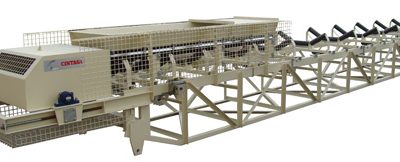

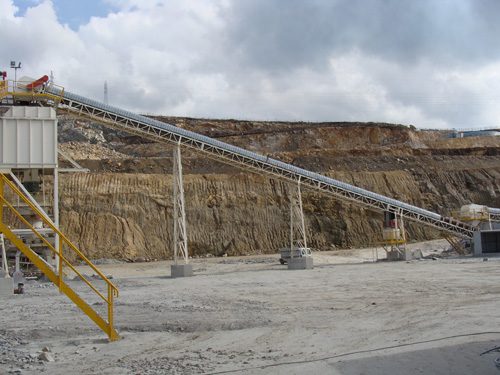

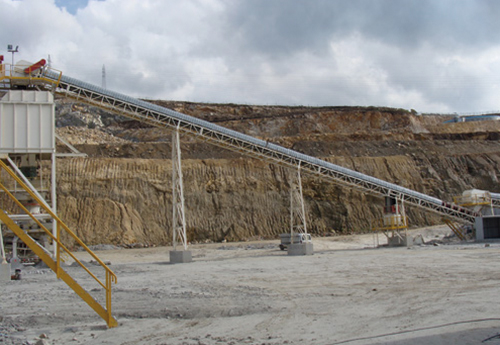

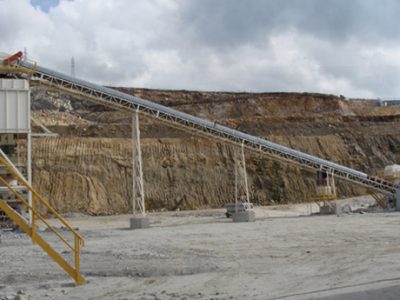

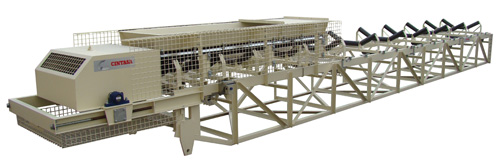

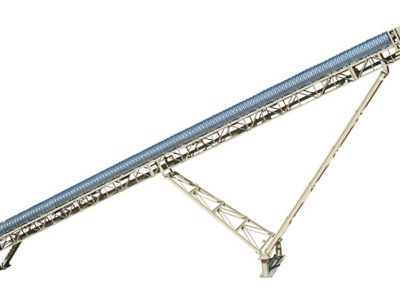

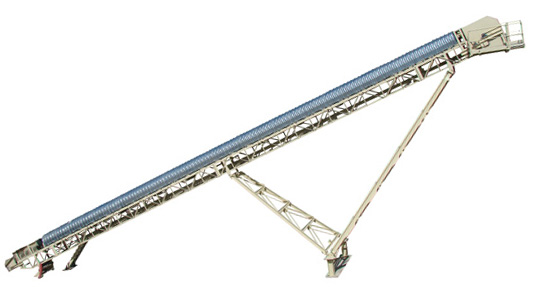

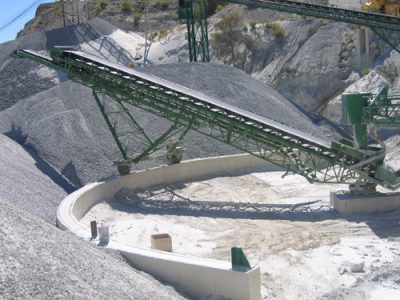

Frame made with UPN laminated profiles and angles, diagonally braced and welded lengthways and transversely, forming a frame and trellis.

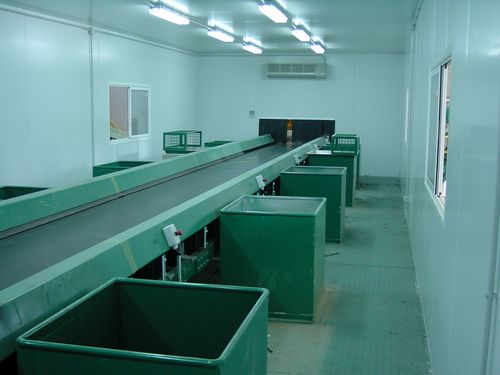

Thanks to its resistance and reduced size the frame is used as a alimentation belt, tripper in combination with our other conveyors, mobile belt and/or reversible in fillings of silos and hoppers, manual selection sections in recycling installations, etc.

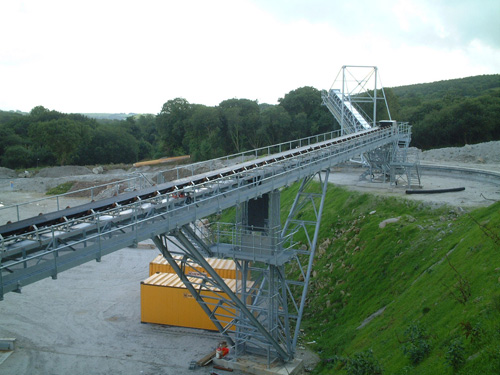

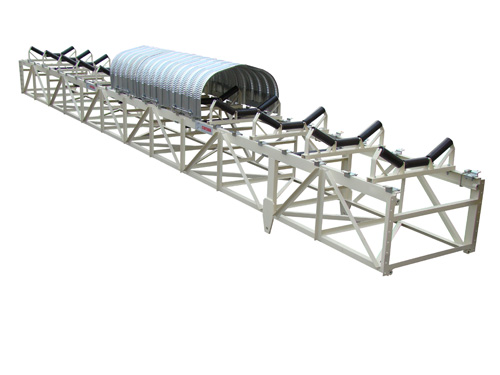

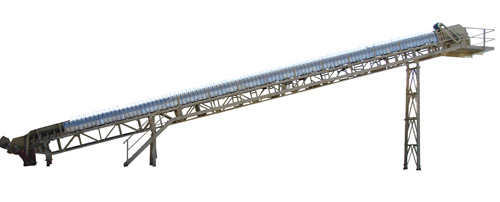

The intermediate frames are constructed in modules with the intention of making transport and installation at the client as easy as possible, as well as the possibility to adapt to any length of conveyor required.

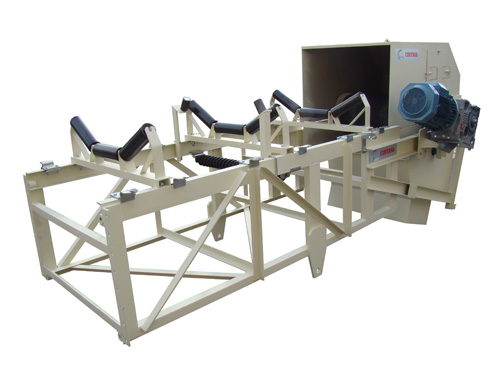

The carrying idlers are bridled over the frame, permitting, in a simple way, the modification of its distribution and position for the correct centering and aligning of the belt.

The drums are made of cylindrical laminated metal sheet, mechanized to the tail drum and stuck to the drive. The shafts of the drums are fixed to the interior cylindrical metal tube cubes, using conical rings and SN type supports with bearings to the frame.

Standard belt widths are of 500, 650, 800, 1000, 1200, 1400 and 1600 mm. Special project widths are being studied.

Maximum transport capacity of about 1200 t/h, depending on densities.

Auxiliary Elements

  • Skirt plates with/without cover plates
  • Unloading chute
  • Tripper car
  • Upper covering, foldable on both sides
  • Trestles / Feet supports
  • Height-adjustable feet supports
  • Bottom tray of collection
  • Decking plates
  • Electrical safety systems
  • Special scrapers
  • Walkway on one or both sides, with head platform
  • Speed variators / Frequency converters

Application Sectors

  • Cement and mining
  • Industrial Plants
  • Iron and steel industry
  • Aggregates and quarries
  • Recycling and environment
  • Energy industry
  • Public constructions
  • Chemical industry
  • Concrete, gypsum and asphalt
  • Farming and ranching
  • Food industry and manufacturing
