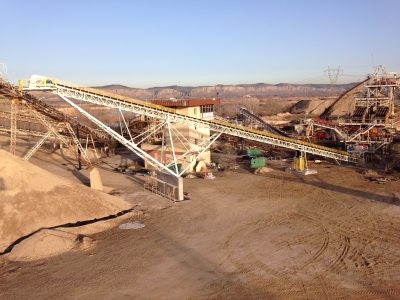

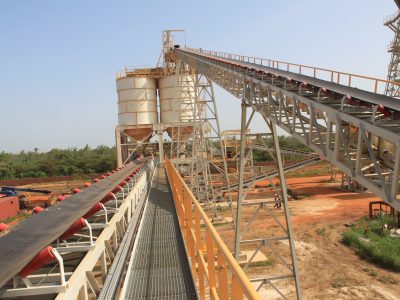

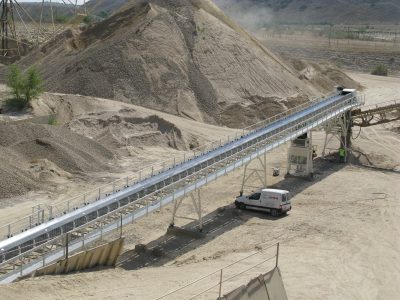

TCL Laminated Lattice

Conveyor belt of maximum robustness and structural strength, designed for transport of large capacities and permitting considerable distances in the openings between supports.

Frame made with UPN laminated profiles and angles, diagonally braced and welded lengthways and transversely, forming a frame and horizontal trellis.

The frames are constructed in modules with the intention of making transport and installation at the client as easy as possible, as well as the possibility to adapt to any length and height of the conveyor required.

The carrying idlers are bridled over the frame, permitting, in a simple way, the modification of its distribution and position for the optimum reception of the load and the correct centering and aligning of the belt.

The drums are made of cylindrical laminated metal sheet, mechanized to the tail drum and stuck to the drive. The shafts of the drums are fixed to the interior cylindrical metal tube cubes, using conical rings and SN type supports with bearings to the frame.

Standard belt widths are of 500, 650, 800, 1000, 1200, 1400 and 1600 mm. Special project widths are being studied.

Maximum transport capacity of about 1200 t/h, depending on densities.

Auxiliary Elements

  • Skirt plates with/without cover plates
  • Unloading chute
  • Tripper car
  • Upper covering, foldable on both sides

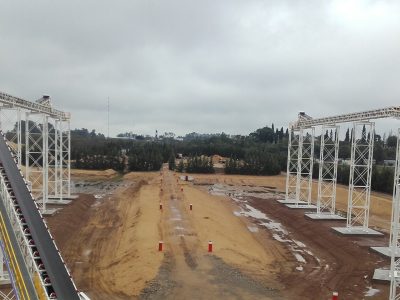

  • Trestles / Feet supports
  • Bottom tray of collection
  • Decking plates
  • Electrical safety systems
  • Special scrapers
  • Walkway on one or both sides, with head platform
  • Speed variators / Frequency converters

Application Sectors

  • Cement and mining
  • Industrial Plants
  • Iron and steel industry
  • Aggregates and quarries
  • Recycling and environment
  • Energy industry
  • Public constructions
  • Chemical industry
  • Concrete, gypsum and asphalt
  • Farming and ranching
  • Food industry and manufacturing
