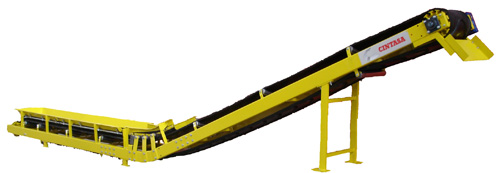

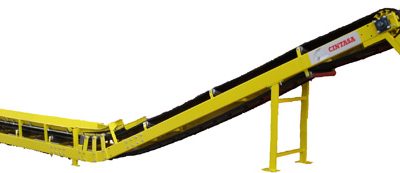

TUC Bended Metal Sheet

Frame made of two metallic sheet profiles in a “U” shape, diagonally braced transversely forming a horizontal trellis.

The intermediate frames are constructed in modules of lengths of 2m to 6m, allowing adaptation to any length of conveyor required.

The roller stations are situated on the frame in a “V” shape, permitting, in a simple way, the correct centering and aligning of the belt.

The drive and tail drums are made of cage type in a convex form and using “T” profiles. The fixing of both drums is by the use of supports with bearings.

Standard belt widths are of 400, 500, 600 and 800 mm.

Maximum transport capacity of about 60-70 T/h, depending on densities.

Auxiliary Elements

  • Guías laterales con/sin tapa
  • Tolvín de caída
  • Cubierta superior fija
  • Soportes de apoyo
  • Soportes de apoyo regulables en altura
  • Tren de ruedas y elevación
  • Bandeja inferior de recogida
  • Sistemas eléctricos de seguridad
  • Rascadores especiales
  • Pasarela unilateral o ambos lados, con vuelta en cabeza
  • Variadores de velocidad / Convertidores de frecuencia

Application Sectors

  • Reciclaje y medio ambiente
  • Industria energética
  • Industria química
  • Agropecuario
  • Industria alimentaria y manufacturera
